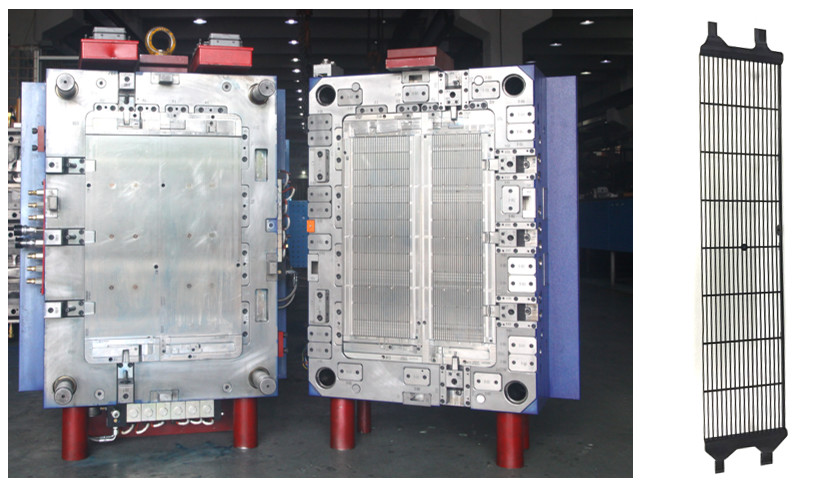

Automotive Air grill Plastic injection mold with material PA66 30GF
for Benz
AUTO Air condition grill injection molding.
Product Quick detail:
1. Cavity: 2 cavities mold
2. Molding Material: PA66+ 30% GF
3. Mold type: serial mold
4. Mold style: middle size mold
5. Mold base standard: Hasco
6. Runner system: hot runner
7. Delivery terms: DDu
8. Mold life: 100 Million
9. Mold status: Insert mold with hardness steel
10. Cavity steel: 1.2343
Product specification:
- Hot runner brand: Moldmaster with 16 nozzles
- Gate style: hot runner with Valve gate on the part
- Ejection: ejector pins and sleeve
- Mold unit: Metric tools
- Surface finish: normal polishing
- Combining Moldflow analysis to optimize design
- Combining DFM report to optimize design
- Mold structure is safty and stable
- Mold have sufficient air venting
- Mold have sufficient cooling line
- Mold produce the Part no defective, such like sink mark, bur mark,
flow mark, flush etc
- Scientific trial out to find optimum injection parameter
- Every procedure follow ISO9001 strictly
- Before tool shipped out no any sigle open opint
- We will make the lifter and (inner) slider in these undercut
position.
Product advantage:
- Mold match customer injection machine 1000T
- Mold is desgined follow customer standard
- Mold is bulit with safest operation when production
- Mold is in guarantee all over the word
- 3 Parters in different area can deal it, in Mexico,Czech and Spain
can provide after-serivice on the overseas.
- Tool have been testing and pass the CPK.
- Tool have been bulit in High Quality and short lead time with best
engineering service
Product application:
- Use for machinery
- Use for electronic
- Use for automotive
- Use for information technology industry
- Use for Space industry
- Use for Medical industry
- Use for Energy industry
FAQ:
1.Why choose GOM?
High Quality and short lead time with best engineering service to
bulid long-term business relationship with customer.
2.What GOM service?
- Components manufacturing
- Plastic molds building
- Injection producing
- Painting & Plating
- Assemble
- Engineering support
3. How to control the quality?
Every process finish must make the measurement by CMM and should be
passed then can do the next process.
4.How to provide after-serivice on the overseas?
We have 3 Parters in different area can deal it, in Mexico,Czech
and Spain.
=======================================================================================
| Mould Base | LKM, DME, HASCO etc ; |
| Cavity Material | 1.2738,1.2343, 1.2344, S7, H13, P20HH, GS738H, LKM738H, 718, 8407,
S136, Calmax 635 NAK80, |
| SKD-61,NIMAX, 45#, 50#, Aluminum for prototype mold etc. |
| Steel Hardness | 20-60HRC |
| Treatment | Pre-Harden, Nitride, Heat treatment, Quenching |
| Cavity | Single-cavity / Multi-cavity |
| Runner | Cold runner or Hot runner :YUDO/ HUSKY/MOLD-MASTER/SYNVENTIRE/INCO/
MASTIP/ HASCO/ DME |
| Gate | Submarine gate, tunnel gate, side/edge gate, direct gate, pin point
gate, sprue gate, diaphragm gate, fan gate, cashew gate, hook gate,
hot tip, hot drop, valve gate etc. |
| Plastic material for parts | PS, PA, POM, ABS, PP, PET, PC, PE, HDPE, PA66+GF, PVC, TPE, TPU,
TPV etc |
| Mould Life | 5000 - 200 0000shots |
| Design Software | UG, CAD, PRO-E, Solid Works etc, |
| Process | CNC, high speed carve, EDM ,wiring-cutting, drill, polish etc |
| Certification | ISO9001:2000 ,ISO14001:2004,TS16949 |
| Lead Time | 10-30 work days depends on the structure and size of products |
| Package | Wooden Case Package or according to customer requirement |
| Price Term | EX Works, FOB Shenzhen, FOB Hong Kong, CFR, CIF, DDU, DDP |
| Payment | T/T, L/C,Western Union , |
GOM could provide a full turnkey solution for customers bespoke
plastic injection moulding needs inclusive of design, development,
mould tooling, production and post moulding support for Automotive, consumer electronic,Home appiance , Toys and Games, Communication industries and etc. |
| OEM & ODM orders are welcome. |
Our Main Services:
1. Plastic molds:
Hot runner mold, precision mold, over mold, two-shot mold,
unscrewing mold, multi-cavity mold, IML/IMI mold, Stack mold,
Die-casting mold, etc.
90% molds exported to North America, South American, Europe and
Australia.
2. Injection Molding:
We have rich experience in molding various engineering grade
resins:
ABS, PC, PC+GF, PC/ABS, PBT, PA6+GF, PA66+GF, PPS, PU, PP, PE, TPE,
TPU, LCP, Ultem, etc.
3. One Stop Services
Based on our strong engineering capability,GOM provide a full turnkey solution for customers bespoke plastic
injection moulding needs inclusive of design, development, mould
tooling, production and post moulding support.
• 3D Scanning
• Prototype
• Painting
• Pad-printing
• Silk-Screen Printing
• Hot Stamping
• Plating
• Color Match
• Ultrasonic Welding
• Automation
• Production Line Assembly
• Precision Metal Parts
• Die casting Parts
